KG4-160WS11

160 kVA Diesel Generator – Power Meets Efficiency

Icon 1
160 KVA
Icon 2
50 hz
Icon 3
< 75 dB(A)
Icon 4
CPCB IV+

Our 160 kVA Kirloskar diesel generator offers a perfect blend of reliable power output, fuel efficiency, and advanced environmental compliance. Ideal for industries requiring constant and efficient power, our genset ensures optimal performance under diverse operating conditions.

Backed by CPCB IV+ emission norms, our genset is designed to meet stringent environmental standards while reducing NOx emissions through its advanced EGT system.

BROCHURE

 Key Features of Our 160 kVA Diesel Genset

160 kVA Diesel Genset - Product Features

Best-in-Class TCO (Total Cost of Ownership)

Our Genset is engineered to deliver superior fuel efficiency, offering the best Specific Fuel Consumption (SFC) in its class.

Durable and Reliable

The use of high-strength materials in critical engine components like the piston and crankshaft ensures longevity.

Lightweight Design:

This CPCB IV+ Genset offers a lightweight build, making it easy to transport and install without sacrificing performance or durability.

10% Overload Capacity

The generator can handle overloads up to 10%, providing extra power when you need it most.

Better NVH

Engineered to reduce noise, vibration, and harshness, making it suitable for noise-sensitive environments

160 kVA Diesel Genset - Product Specifications

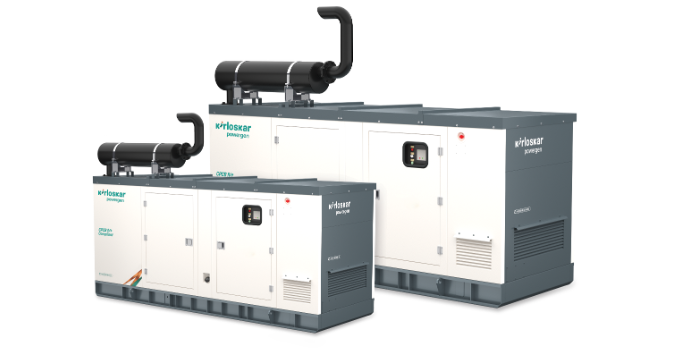

Main Product Image

Technical Specification

Prime Rating at rated rpm (as per ISO8528)1

160 kVA

Prime Rating at rated rpm (as per ISO8528)1

128 kW

Genset Model

KG4-160WS11

Frequency

50

Power Factor

0.8

Voltage

415 (3ɸ)

Governing class (As per ISO 8528 Part-V)

G3

Noise level

<75 dBA

Weight of genset with canopy

Dry

2980 kg

Wet

3050 Kg

Overall dimensions of genset

Length

4200 mm

Width

1450 mm

Height

1900 mm

Electrical Battery Starting Voltage

12 Volts-DC

Engine Model

6K1080ETA 4G1

Rated output (Prime Continuous rating as per ISO 8528-1)

147.1 kW

Rated output (Prime Continuous rating as per ISO 8528-1)

200 HP

Why Choose our 160 kVA Generator?

Our generator is built to deliver superior performance with its compact inline engine, offering both space-saving benefits and maximum power output. The engine's components, made from high-strength materials, are built to last even in harsh weather conditions. The gallery-cooled piston design ensures efficient heat transfer, keeping the piston cool and extending its lifespan.

Image 1

Reduced NVH (Noise, Vibration, and Harshness) ensures quieter operations.

Image 2

Superior casting design in the cylinder head enhances the engine's fatigue life.

Image 3

Turbocharged after-cooling boosts the generator’s efficiency.

 CPCB IV+ Emission Norms and Environmental Compliance

The 160 kVA Kirloskar DG set complies with the latest CPCB IV+ emission norms, ensuring that it operates with minimal environmental impact. . These norms set a new standard for emission control, and our generator goes beyond this with its Exhaust Gas Treatment (EGT) system. This advanced system ensures complete elimination of harmful gases, making it an eco-friendly option for both home and industrial use.

CRDi Fuel Injection System for precise fuel delivery and reduced emissions.

50% Block loading capability, complying with ISO 8528 standards.

Environmentally responsible with CPCB IV+ certification.

Application segments

Application and Segments

Agriculture

Agriculture

Educational Institutes

Educational Institutes

Government and Defense

Government and Defense

Healthcare

Healthcare

Hospitality

Hospitality

Industries

Industries

Government and Defense

Government and Defense

Asset Publisher

FAQ’s

Is the Kirloskar 160 kVA Diesel Generator affordable?

We offer competitive diesel generator prices, ensuring that you get the best value for your investment. The 160 kVA generator price varies depending on the model and features, but we guarantee you get the highest quality for the price.

What are the key benefits of a diesel generator?

They are fuel-efficient, consuming less fuel than gas engines, which makes them cost-effective for long-term use. Known for their durability, diesel generators are built to handle heavy loads and perform reliably in demanding conditions. They also require less maintenance due to their robust design and the absence of spark plugs. With a high power output, diesel generators are ideal for applications requiring consistent and strong energy supply. Additionally, diesel fuel is less flammable, which enhances safety by reducing the risk of fire or explosion.

How do I determine the right kVA rating for my needs?

To determine the right kVA rating for your needs, you must first assess the total power requirements of the equipment or systems you intend to run. Start by calculating the total wattage of all devices, then consider factors like starting power surges for motors or machinery, and whether you need the generator for continuous or backup use. Additionally, account for future growth or additional power needs. Consulting a professional can help ensure you select the appropriate kVA rating to match your power demands and avoid under or over-sizing the generator.
