Generator Image
KG4-7.5WS1

7.5 kVA Diesel Generator – Power Meets Efficiency

Icon 1
7.5 KVA
Icon 2
50 hz
Icon 3
< 75 dB(A)
Icon 4
CPCB IV+

Our 7.5 kVA Diesel Generator is engineered for maximum efficiency, delivering robust power output with a lightweight design. Equipped with established features such as naturally aspirated engine, and high-strength build, this diesel genset meets the stringent CPCB IV+ emission norms, ensuring low emissions and environmental safety.

Whether you're seeking a dependable generator for businesses, commercial establishments, or large industrial operations, our Genset offers optimal performance, fuel efficiency, and durability across a range of applications.

BROCHURE

Key Features of Our 7.5 kVA Diesel Genset

7.5 kVA Diesel Genset - Product Features

Best-in-Class TCO (Total Cost of Ownership)

Our genset is designed to reduce operating costs by offering 2-8% reduction in Specific Fuel Consumption (SFC).

Durable and Reliable

The use of high-strength materials in critical engine components like the piston and crankshaft ensures longevity

Light in weight

We offer a light weight genset enabling ease of handling and transportation.

10% Overload Capacity

The generator can handle overloads up to 10%, providing extra power when you need it most.

Better NVH

Engineered to reduce noise, vibration, and harshness, making it suitable for noise-sensitive environments.

7.5 kVA Diesel Genset - Product Specifications

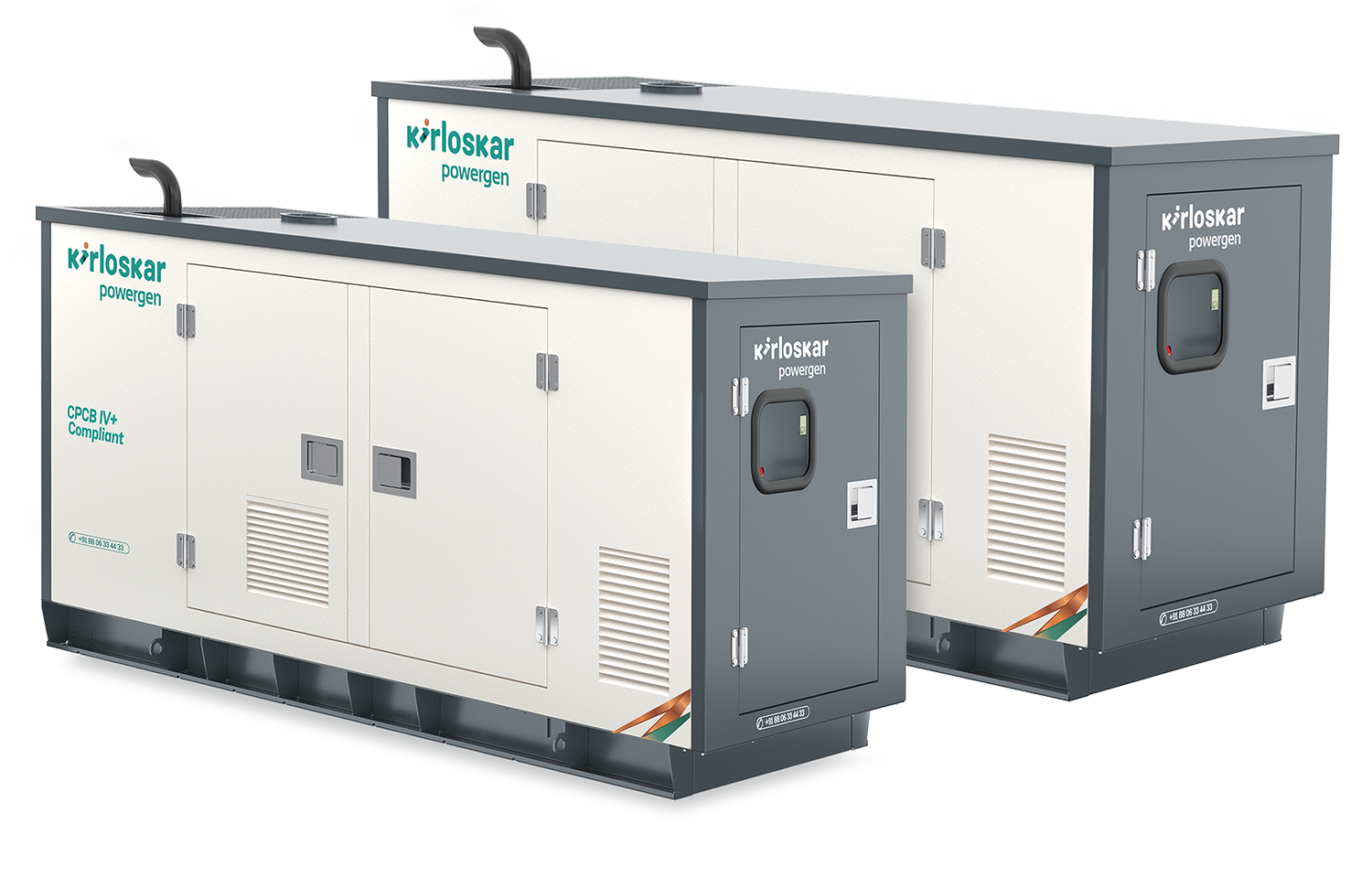

Main Product Image

Technical Specification

Prime Rating at rated rpm (as per ISO8528)1

7.5 kVA

Prime Rating at rated rpm (as per ISO8528)1

6 kW

Genset Model

KG4-7.5WS1

Frequency

50

Power Factor

0.8

Voltage

230 (1ɸ) & 415 (3ɸ)

Governing class (As per ISO 8528 Part-V)

G2

Noise level

<75 DBA

Weight of genset with canopy

Dry

545 kg

Wet

550 Kg

Overall dimensions of genset

Length

1600 mm

Width

760 mm

Height

1050 mm

Electrical Battery Starting Voltage

12 Volts-DC

Engine Model

2R550NA 4G1

Rated output (Prime Continuous rating as per ISO 8528-1)

7.9 kW

Rated output (Prime Continuous rating as per ISO 8528-1)

10.74 HP

Why Choose our 7.5 kVA Diesel Genset?

Our 7.5 kVA generator is designed to outperform the competition with its compact inline engine, which not only saves space but also maximizes power output. The engine's components, made from high-strength materials, are built to last even in harsh weather conditions. The gallery-cooled piston design ensures efficient heat transfer, keeping the piston cool and extending its lifespan.

Image 1

Reduced NVH (Noise, Vibration, and Harshness) ensures quieter operations.

Image 2

Superior casting design in the cylinder head enhances the engine's fatigue life.

Image 3

Natural aspirated engines provides reliable performance without the complexity of forced induction systems.

CPCB IV+ Emission Norms and Environmental Compliance

Our 7.5 kVA diesel generator complies with the latest CPCB IV+ emission norms, which are designed to limit the emission of pollutants like NOx (Nitrogen Oxides). These norms set a new standard for emission control, and our generator goes beyond this with its Uncooled Exhaust Gas Recirculation (EGR) system. This effective system reduces NOx emissions, enhancing environmental sustainability for various applications.

CRDi Fuel Injection System for precise fuel delivery and reduced emissions.

50% Block loading capability, complying with ISO 8528 standards.

Environmentally responsible with CPCB IV+ certification.

Application segments

Application and Segments

Agriculture

Agriculture

Educational Institutes

Educational Institutes

Government and Defense

Government and Defense

Healthcare

Healthcare

Hospitality

Hospitality

Industries

Industries

Government and Defense

Government and Defense

Asset Publisher

FAQ’s

Is the Kirloskar 7.5 kVA Diesel Generator affordable?

We offer competitive diesel generator prices, ensuring that you get the best value for your investment. The 7.5 kVA generator price varies depending on the model and features, but we guarantee you get the highest quality for the cost.

What are the key benefits of a diesel generator?

DG sets are fuel-efficient, consuming less fuel than gas engines, which makes them cost-effective for long-term use. Known for their durability, diesel generators are built to handle heavy loads and perform reliably in demanding conditions. They also require less maintenance due to their robust design and the absence of spark plugs. With a high power output, diesel generators are ideal for applications requiring consistent and strong energy supply. Additionally, diesel fuel is less flammable, which enhances safety by reducing the risk of fire or explosion.

How do I determine the right kVA rating for my needs?

To determine the right kVA rating for your needs, you must first assess the total power requirements of the equipment or systems you intend to run. Start by calculating the total wattage of all devices, then consider factors like starting power surges for motors or machinery, and whether you need the generator for continuous or backup use. Additionally, account for future growth or additional power needs. Consulting a professional can help ensure you select the appropriate kVA rating to match your power demands and avoid under or over-sizing the generator.

How reliable are Kirloskar gensets and what is their expected lifespan?

Our gensets are one of the most reliable products available in the market. They have the best in class fuel efficiency due to an advanced inline cylinder engine, and sophisticated features such as a CRDi fuel injection system, high strength materials, and a high temperature capability to withstand harsh weather conditions. The expected life-span varies depending on the type of genset and daily usage. Our generator sets have 500+ hrs of running capability.

Need help finding the perfect product or system?

Let one of our experts guide you.
