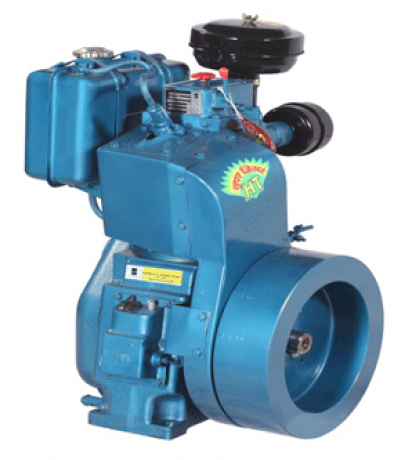

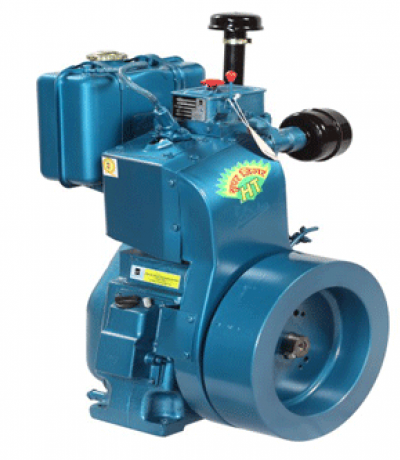

ENGINE TYPE: Vertical, Water cooled, four stroke cycle, compression ignition diesel engine.
Product Model: AV1
Product RPM: 1500
Engine Cooling: Water
Number of Cylinders: 1
Bore X Stroke (mm): 80X110
Cubic Capacity (ltr): 0.553
Compression Ratio: 16.5:1
Rated Output (kW/Hp): 3.7/5
Torque at Full Load(kg-m): 0.024(2.387)
Fuel Consumption (gm/hp-hr): 185+5%
Lube Oil Capacity(ltr): 3.7 at higher level mark on dipstick
Lube Oil Consumption: 0.8% of SFC Max.
Fuel Tank Capacity(ltr): 6.5
Dimension LXWXH (mm): 617X504X843
Engine Weight (kg): 130
Flywheel Rotation: Clock Wise
Starting: Hand Start
Type of Fuel Injection: Direct Injection
