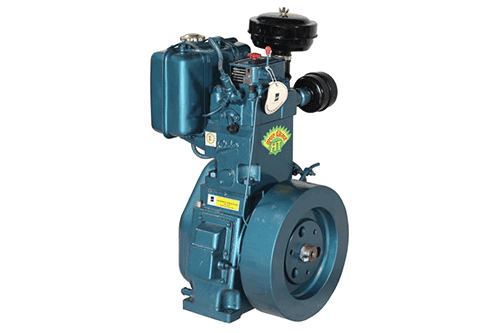

ENGINE TYPE: Vertical, Water cooled, four stroke cycle, compression ignition diesel engine.
Product Model: DM10
Product RPM: 1500
Engine Cooling: Water
Number of Cylinders: 1
Bore X Stroke (mm): 102X116
Cubic Capacity (ltr): 0.948
Compression Ratio: 17.5:1
Rated Output (kW/Hp): 7.4/10
Torque at Full Load(kg-m): 0.048(4.775)
Fuel Consumption (gm/hp-hr): 185 + 5%
Lube Oil Capacity(ltr): 3.7 at higher level mark on dipstick
Lube Oil Consumption: 0.8% of SFC Max.
Fuel Tank Capacity(ltr): 11.5
Dimension LXWXH (mm): 617X532X850
Engine Weight (kg): 177
Flywheel Rotation: Clock Wise
Starting: Hand Start
