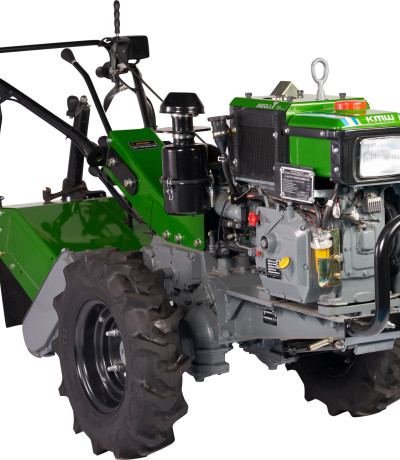

MEGA T 15 LVS
Koel-All Products Farm Mechanization MEGA T 15 LVS Toggle Accordion
This revolutionary farm machine packs in the power of K cool engine technology and versatility of a tiller and matches it up with the comfort and performance of a tractor. KMW Mega T 15 LVVS offers:
- The LVS Series has the Ultra Light Transmission which offers the Power of 15 Hp Engine and Performance of Light series transmission and is best suited for Wet Land Areas.
- This 15 HP K Cool Engine is India’s most advanced Engine available for Power Tillers.
- The Various Features of this engines are:
- K Cool Technology For forced cooling by internal water pump which ensures the engine can be run non stop for 24 hours.
Engine Oil Filter: Advanced Engine Oil Filter is provided so that the Engine Oil is always clean of dust/debris. This Improves the Performance and life of wear components.
Oil Cooling Jets: It has oil cooling Jets inside the Crankcase which keeps various components lubricated and cool.
Powerful Engine: A powerful 15 HP engine that can handle almost every kind of farm work with ease
Emission Compliance: The Engine complies to TREM III class.
Designed for both wet and dry land applications
Low Fuel Consumption Because of advanced engine the fuel consumption is very low
- Hydraulic Brakes and Seat : Hydraulic brakes makes the machine very safe and comfortable seat compatibility ensure maximum safety and comfort to users.
- Multiplate Clutch to ensure longer and trouble free operations
- Ergonomic Design: The design of this power tiller is Ergonomic with a well balanced system. This Ensures that the operator is able to handle the Machine with ease and less fatigue.
|Make||Kirloskar Oil Engines Ltd.|
|Emission Compliance||TREM III|
|Type||Single Cylinder, Horizontal, Water Cooled Diesel Engine|
|Bore X Stroke||100 mm X 96 mm|
|Max Torque (Nm)||45|
|Max Torque (RPM)||1530+20|
|Type of Cooling||Forced Water Cooling|
|Engine Oil Capacity (L)||2 (SAE 15W40 F4)|
|Air Cleaner||Oil Bath Type|
|Fuel Tank Capacity (L)||8|
|No. of Gears||6 Forward + 2 Reverse|
|Minimum Speed||1.48 kmph|
|Maximum Speed||16.33 kmph|
|Gear Oil||5 (80 W 90 Grade)|
|Chain Casing Oil CapacityOil||0.4 (80 W 90 Grade)|
|Hydraulic Operated Brakes||Optional|
|Metal Ring Type Brakes||Yes|
|Type||Dry, Multi Plate|
|Clutch Plate Dia.||160 mm|
|No. of Blades||20|
|Side Drive||Chain Drive|
|Rotor Speed Range||183 rpm and 304 rpm|
|Length (with seat)||2490 mm|
|Height||1320 mm (with tail wheel)|
|Track Width||710 mm to 605 mm|
|Drive Wheels||6.00-12 (6 ply) - Traction Type|
|Side Power Take-off||No|
